OPT-ML10-420C

Delivery time 3-5 Workdays

  • 06.23.0069
Max compatible with 2MP camera Object-space telecentric design For more information on... more
Product information "OPT-ML10-420C"
  • Max compatible with 2MP camera
  • Object-space telecentric design

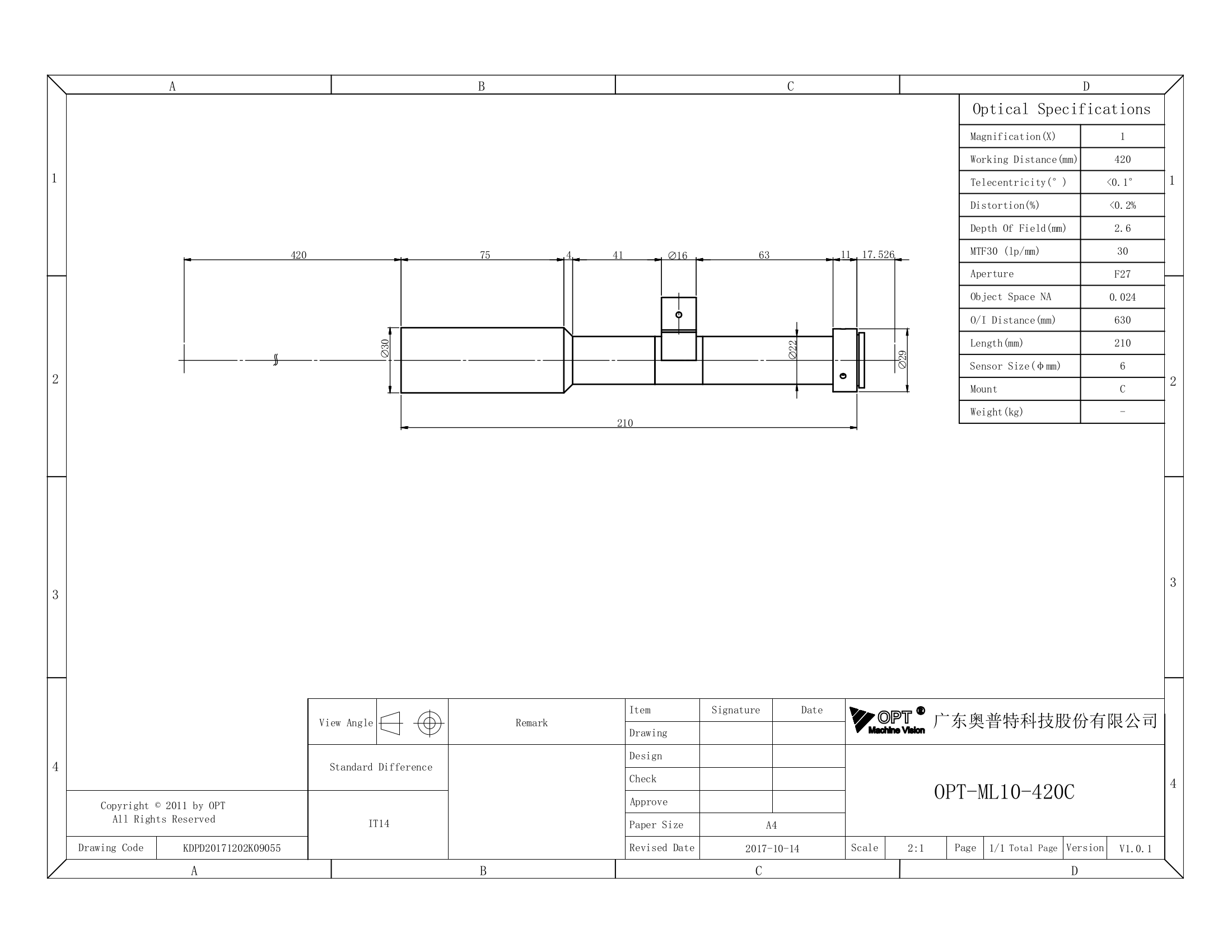

For more information on matching sensor formats and fields of view, please refer to the datasheet.

Lens mount: C
Megapixel: 2
Aperture: 27
Distortion: 0.2 %
Magnification: 1 ×
Image circle: 6 mm
Working Distance: 420±12 mm
DOF: 2.23 mm
