OPT-TS0238-138S-AL

Preview: Lens Series Group Photo Preview: Dimensions
Lens Series Group Photo

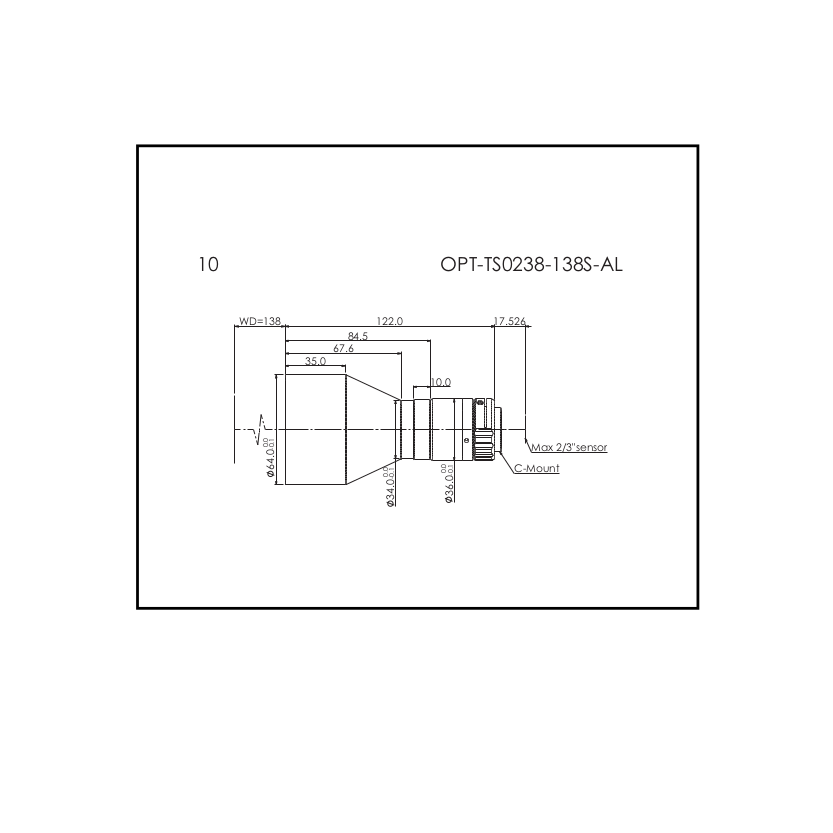

Dimensions


Delivery time 3-5 Workdays

  • Order number: 06.23.0088
Description
Description
Remark: At the borders of the DOF the image still can be used for measurement. But only half of... more
Close menu
Product information "OPT-TS0238-138S-AL"

Remark: At the borders of the DOF the image still can be used for measurement. But only half of the nominal DOF can get sharp images.

  • Compatible with C-Mount cameras from 1/2.5"–1"
  • High resolution
  • Bi-telecentric design, high telecentricity
  • Large aperture, low distortion, and large depth of field (DOF)
  • AL: Back focal length adjustable

For more information on matching sensor formats and fields of view, please refer to the datasheet.

Lens mount: C
Aperture: 6.7
Distortion: 0.1 %
Sensor Size: 1/2.5"–1"
Image circle: 11.4 mm
Working Distance: 138±3 mm
Magnification: 0.238 ×
DOF: 9.76 mm
