e9u-LSMD-TCD1304-ECO

Delivery time 2-3 Workdays

  • 02.29.0001

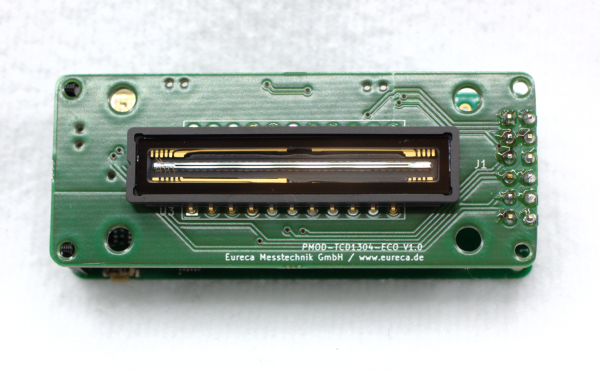

Line scan camera module by EURECA for general measurement applications, as e.g. edge detection,... more
Product information "e9u-LSMD-TCD1304-ECO"

Line scan camera module by EURECA for general measurement applications, as e.g. edge detection, position control or measuring objects, Economy Version.

The latest technical documentation, as simple GUI (Graphical User Interface), as well as the source codes for writting own software can be found here.

For larger volumes, please contact our sales team to get an individual quotation.

Pixel number: 3648
Pixel height: 200µm
Read out noise (typ. rms): 65e−
min. Exposure Time: 1ms
Exposure Time Gradation: 1ms
max. Frame Rate: 125fps
Frame Rate Gradation: 1ms
Max. Data Rate USB: 2MB/s
Ext. Trigger Input: no
Sensor: TCD1304
Pixel pitch: 8µm
Digitization Depth: 12bit
Conversion Gain (typ @ 0.4 FS): 1.3±0.2e−/LSB
Linear Full Well Capacity: 50ke−
Full Scale Capacity: 85ke−
Minimum Frame Rate: 0.015fps
